    Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery

    Ask Lasest Price
    Brand Name : ccmie
    Model Number : 423471
    Certification : ISO
    Price : negotiate
    Payment Terms : L/C, T/T
    Supply Ability : 10000pc/year
    Delivery Time : in 20 days
    • Product Details
    • Company Profile

    Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery

    Duo Cone Floating Seal 423471 For Heavy Duty Machinery


    Product description:


    One setConsists of two metal sealing rings and two rubber rings
    Material100CR6 steel+NBR60
    Warranty18 months
    StockAvailable
    FOBWuhan ,Shanghai ,Qingdao ,Ningbo ,Shenzhen ,Xiamen
    PackageShrink films +inner box + standard export carton + wood pallet + wood box
    ApplicationConstuction machinery ,farm machinery ,coal mining machinery



    METALSteel Gcr15/ 100Cr6Cast 15Cr3Mo
    Surface smoothness/roughness    ≤Ra0.2μm6.3-12.5μm
    Work face smoothness≤Ra0.15μm≤Ra0.1μm
    Pressure loading≤0.15MPa≤0.3 MPa
    Forging line speed2m/s3m/s
    Temperature range-100~200°C-40~160°C
    Hardness (HRC)58-6262-68
    Lifetime (Hours)3000-50005000-8000

    Method of installation

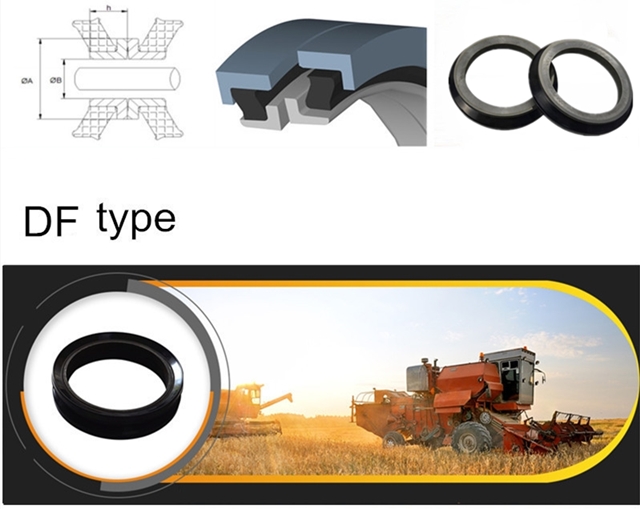

    1.Using specialized tools installation: The pressure will apply to the O-ring directly. As shown, the special tool is mounted between the metal floating ring and the rubber ring, toward the seat hole, the rubber ring is evenly pressed into the hole.

    2.Other installation methods: One auxiliary O-ring is fixed between the conical ring surface of the floating oil seal and sealing O-ring (as shown). The ring of the floating oil seal is applied uniformly by pressure and the auxiliary O-ring braces the sealing O-ring to ensure the other correct mounting positions.


    Other parts number you need can contact us to check!
